Rail Screw & Spike

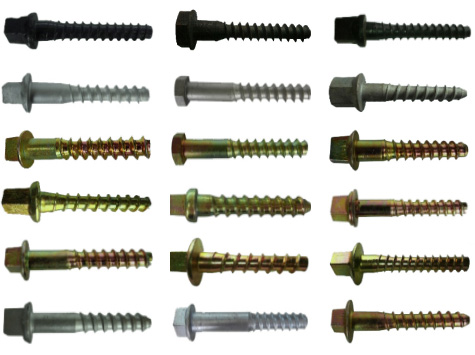

Sleeper Screws Standard Reference Type Finish Grade Raw Material
\
UIC864-1
NF F50-006
NF F500-15
NF F500-50
ISO898-1
AS1085.18
GB/T3098.1
ASTM A66-01/87
Ss5,Ss8,
Ss23,
Ss25,Ss35
V20,V23,V26
1"x 6"
15/16"x 6"
1"x 5-1/8
Plain & Oiled,
Oxide Black,
Zinc Plated,
Dacromet,
Hot Dip
Galvanized, etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel

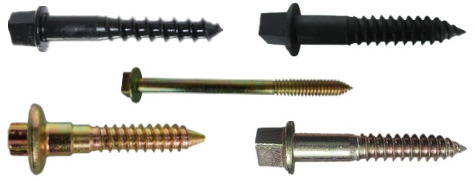

Timber Screws Standard Reference Dia Type Finish Grade Raw Material
\
AREMA
ASTM
ANSI
SAE
3/4"
15/16"
1"
Oxide Black,
Zinc Plated,
Wax Dipped,
etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel

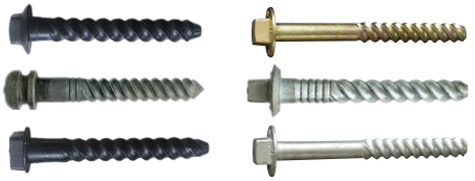

Spiral Screws Standard Reference Dia Type Finish Grade Raw Material
\
AREMA
ASTM
ANSI
SAE
5/8"
3/4"
7/8"
Oxide Black,
Zinc Plated,
etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel

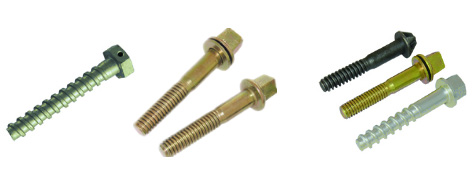

TR Screw Spikes Standard Reference Dia Type Finish Grade Raw Material
\ NF F500-15
UIC864-2
ISO898-1
M22
M23
M24
Oxide Black,
Zinc Plated,
Hot Dip Galvanized,
etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel

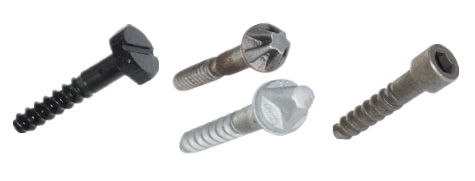

Special Head Screw Spikes Standard Reference Dia Type Finish Grade Raw Material
\ NF F500-15
UIC864-2
ISO898-1
M18
M24
Oxide Black,
Zinc Plated,
Hot Dip Galvanized,
etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel

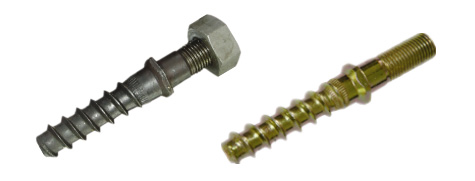

Double Head Screw Spikes Standard Reference Dia Type Finish Grade Raw Material
\ NF F500-15
UIC864-2
ISO898-1
M24
M25
Oxide Black,
Zinc Plated,
Hot Dip Galvanized,
etc
4.6
4.8
5.6
8.8
10.9
Low Carbon Steel
Medium Carbon Steel
Alloy Steel
Customization is available !


Screw Spike ,Sleeper Screw, Rail Screw :

  • \ Railway screw spikes are usually used to fasten railway ties or sleepers and they also can be used in conjunction with plastic ferrules, cast into concrete ties/sleepers. Rail screw spikes can be various in thread profiles, lengths, diameters and drive heads based on specific geographic requirements.
Dog Spikes Standard Reference Dia Type Finish Grade Raw Material
\ AREMA ,
ASTM,
JIS,
GOST,
AS
1/4",
3/8"x3/8"
1/2"x1/2"
9/16",
5/8"
3/4",
M16x16
M22
Oxide Black,
Zinc Plated,
Painting
1,
2
etc.
Low Carbon Steel
Medium Carbon Steel

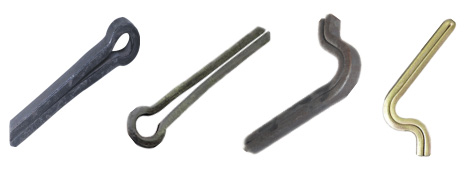

Lock Spikes & Elastic Rail Spikes Standard Reference Dia Type Finish Grade Raw Material
\ AREMA ,
ASTM,
JIS,
GOST,
AS
L1,
L6,
L51
Plain&Oiled,
Oxide Black,
Zinc Plated,
Painting
//////// Spring Steel
Customization is available !

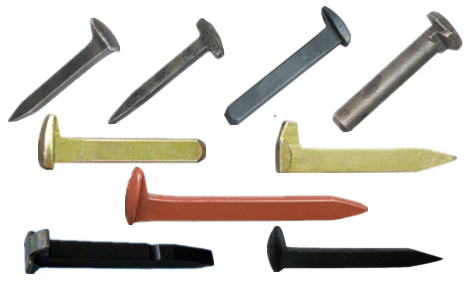

Track Spike, Dog Spike, Rail Spike
  • \The dog spike is used to fasten T-shaped rail road track to wooden ties, which has an L-shaped head and square shank, and the underside of whose head is sloped to fit the top surface of the rail base. Spikes with various sizes are provided to meet the different requirements of penetrating length of spikes. The common track spikes are the 5/8”*6” and the 9/16”*5-1/2” for smaller rail sections, and they are usually secured in either 200 lb. kegs or 50 lb. kegs.

Lock Spike
  • \The Tie Plate employ spring compression to hold tie plates firmly in place on cross ties and bridge timbers. They can be driven with standard track tools. Spikes are placed on the diagonally opposite hold-down holes of the tie plate and driven in prebored holes in the tie. Holes of 9/16 in. diameter are drilled to a depth of 7 in. below the top of the tie plate. Spikes are available in 6 in. or 7 in. lengths.Two lock spikes normally are used in conjunction with two standard cut spikes in each tie plate.

Elastic Rail Spike
  • \The development of a simple and economical fastening for use with flat-bottom rail resulted in development of the elastic rail spike.This provided a simple and economical fastening for use with flat-bottom rail on wood sleepers.The lockspike baseplate fastening, which is an alternative to the elastic rail spike, is a simple one-piece spring spike designed specifically to secure baseplates to wood sleepers.It fills the hole in the baseplate by spring action in a lateral direction, and holds the track gauge secure with the baseplate fixed firmly to the sleeper

  • The different kinds of Sleeper Screws,Track Spike, Lock Spike and Elastic Rail Spikes are HuiBo Railway's conventional products, our production capacity reached to 1,200Tons each month ,all for exporting ! We monthly and annually produced and shippedto the clients worldwide !
