Rail Fastening Systems
\ \

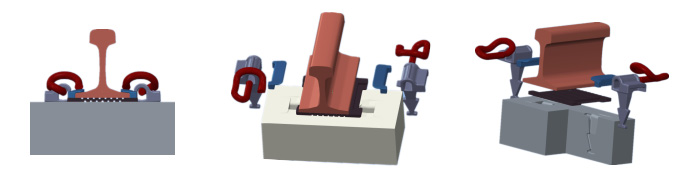

E-clip Rail Fastening System Quantity/Set Raw Material Size Remark
E clip 2 60Si2MnA,
60Si2CrA
Dia. 16mm,18mm or 20mm
(E1809, E2006,E2007,E2009,etc)
Hardness: 44-48HRC
Toe Load:
Dia.16mm: 500-700kgf;
Dia.18mm:750-900kgf;
Dia.20mm:1100-1400kgf
Fatigue life: 5 millions cycles without breaking
Standard: DIN17221, BS970, GB/T1222
Shoulder 2 QT500-7,
QT450-10
For UIC54, UIC60, 115RE,
BS80lbs, BS100lbs, 50kg rail,
60kg rail, etc.
Note: Hardness of E-clip is 44-48HRC;
Toe Load for E-clip is
500-700kgf (Dia.16mm);
750-900kgf(Dia.18mm);
1100-1400kgf(Dia.20mm);
Fatigue life of E-clip is 5 millions cycles without breaking
DIN17221, BS970, GB/T1222 ualified E-clip
Rail pad 1 HDPE, Rubber or EVA
Insulator 2 Reinforced Nylon 66 (PA66)

\ \

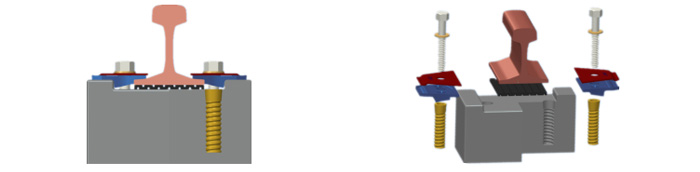

SKL Clip Rail Fastening System SKL Tension Clip Ss35 Screw Spike Ss35 Screw Spike Plastic Dowel Guide Plate Rail Pad
Quantity/Set 2 2 2 2 2 1
Raw Material 60Si2CrA, 60Si2CrA, 38Si7 Grade 4.6: Q235;
Grade 5.6: 35#
Grade 8.8: 45#
Q235 HDPE, Reinforced Nylon 66 (PA66) Reinforced Nylon 66 (PA66) EVA, or rubber
Size Skl1,Skl3, Skl12,Skl14 M24×150mm Uls7 For different sizes of screw spike UIC54, UIC60, 50kg rail, 60kg rail,
and other sizes as ordered
N/A
Remarks Hardness:42-47HRC
5 millions cycles without breaking
Standard:
DIN17221,
GB/T1222
Standard:
ISO898-1,
UIC864-1,
NF F500-50
Standard: EN10025, EN10139 To insert into concrete sleeper Customized products available.

\ \

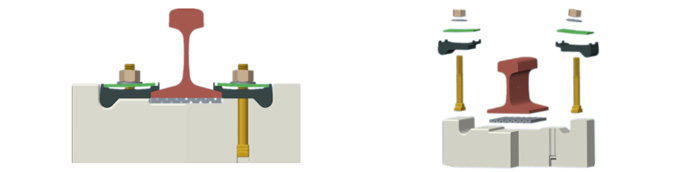

Nabla Clip Rail Fastening System Nabla Clip Insulator Screw Spike Spring Washer
Quantity/Set 2 2 2 2
Raw Material 60Si2MnA, 60Si2CrA Reinforced Nylon 66 (PA66) Grade5.6:35# ML08AI
Size 4mm or 4.5mm thicker N/A UIC54,UIC60,50kg rail,60kg rail 18.25x34x78mm
Remarks Hardness:42-47HRC
3 million times without breaking;
Application for different rail type
Density:1.3-1.45g/cm3
Tensile strength:≥170Mpa Elongation:≤4.4%
Bending Strength:≥250Mpa
Impact Strength(No gap):≥80KJ/m2
Melting point:250-270℃
Insultion resistance:≥1X108Ω
Glass fiber content:30-35% Hardness:≥110HRR
Tensile strength:≥500Mpa
Yield strength:≥300Mpa Elongation:≥20%
Cold bending:90 degree without crack
Chemical composition(%):
C:0.05-0.10, Mn:0.30-0.60, Si:≤0.1,
Cr:≤0.2, P:≤0.035, :≤0.035

\ \
KPO Clamp Rail Fastening System KPO Clip Screw Spike HS Bolt Hex Nut Double Spring Washer Base Plate
Quantity/Set 2 2 4 2 2 1
Raw Material Q235 Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45#
Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45#
Grade 5: 35#
Grade 8: 45#
65Mn Casting iron
QT500-7,
QT450-10,
or forging low carbon steel or high carbon steel;
Types KPO3, KPO6, KPO9 M24×150mm
M24 ×160mm
M24 ×180mm
HS26,
HS32
As ordered As ordered UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size
Remarks Standard: DIN5906 Standard:
ISO898-1,
UIC864-1,
NF F500-50
Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: DIN985 Standard:
UIC864-3
Standard: UIC864-6

\ \
J2Rail Fastening System Spring Plate Anchor Bolt Guide Plate Hex Nut Flat Washer Rail Pad
Quantity/Set 2 2 2 2 2 1
Raw Material 60C2XA / 45# Grade 4.6: Q235; Grade 5.6: 35# Grade 8.8: 45# Reinforced Nylon 66 (PA66) Grade5: 35#
Grade8: 45#
Q235/35#/45# EVA, or rubber
Application J2-UIC60 / J2-UIC54 / J2-RN45 / J2-P50 / J2-AREA 115RE

Rail Fastening System
  • \A rail fastening system is used to fix rails to railway sleeper or railroad ties, which is usually consisted of rail anchors, rail tie plates, chairs, fasteners, spikes, screws, bolts, etc. The selection of a fastening system must be made with utmost care for rail road safety can’t be compromised.


Types of Fastenings
  • \Various types of fastenings have been developed to meet the requirements of railway development. Namely, there are fastening with rail spike with base plate above the tie, E-clip Fastening, Pandrol Fast Clip Fastening, Tension Clamp Fastening, Bolt Clamp Fastening,Tack Joint and Chairs Fastening, and Steel Spring Keyed rail in Chair Fastening, the name of which may vary with locations, and the picture of the various of rail fastening system are shown as follow:

\ \ \ \
Rail spike fastening Bolt clamped fastening Fastclip fastening Steel spring keyed rail in chair
\ \ \ \
E-Clip fastening Track joint and chairs Tension clamp fastening Nabla Clip fastening

Fastening Design Criteria
  • \A resilient fastening has its own features, such as, the spring/clip holding the rail to the railroad sleeper, the shoulder/anchor holding the clip, an insulator and a rail pad separating the rail from the railroad sleeper. As for the four features, there are strict criteria stipulated to ensure the fastening effect.


A) . Rail clamping force
  • \Clamping forces may vary with the fastening system and customer requirements. Generally, most fastening systems offer a clamping force per clip between 7.5 to 12.5 kN with deflections of the clips toe between 10 and 15mm. According to European standards, the minimum force to push the rail through the fastening system of 7kN is for most main line tracks and 9 kN for high speed rail and heavy freight lines, which suggests that a nominal clamping force per clip of 8.5kN at minimal for mixed traffic line and 10 kN for the more severe applications.


B). Shoulder/ anchor
  • \The shoulder/anchor has a very important role in fastening system. The shoulder/anchor has to be able to withstand the impact of loads and vibration transmitted to the sleeper without breaking the sleeper or getting loose. The European standard requires that all the elements of fastening should be capable to withstand a 60kN pullout force with doing no harm to the sleeper.


C). Insulator
  • \The shoulder/anchor has a very important role in fastening system. The shoulder/anchor has to be able to withstand the impact of loads and vibration transmitted to the sleeper without breaking the sleeper or getting loose. The European standard requires that all the elements of fastening should be capable to withstand a 60kN pullout force with doing no harm to the sleeper.


D).Rail pads
  • \The function of rail pads is to spread the load from the rail to the railroad sleeper and to attenuate the loads impact from bad joints, track irregularities and faults in rolling stock. The railroad pad is usually made of rubber, of 10 mm thick, or is a plastic such as EVA between 5 mm and 10 mm thick. The stiffness of the pad is typically in the rang 40-450 kN/mm, and the 5 mm plastic pad can offer stiffness as high up to 6000 kN/mm. Low stiffness railroad pads are not recommended for use in curves sharper than about 400m radius.


  • HuiBo Railway has a strong ability to design kinds of the Rail fastening systems according to clients' different requirements in actual railway constructions . our technical team have more than 20 years of rail fastening development experience ,guaranteed the best solutions for the different railroad projects at home and abroad !
